2 Stage Hall Sensor Electronic Lifting Column Actuator Operating Table 4500N

Brand Name : Linsheng Auto II MaxM

Model Number : LS-PAT-81

Certification : CE

Place of Origin : CHINA

MOQ : negotiable

Price : 29-299 USD/PCS

Payment Terms : L/C, T/T, PayPal

Supply Ability : 10000 PCS per month

Delivery Time : 2 Weeks

Packaging Details : Paper gift box

Name : Telecoping Column

Voltage : 12/ 24VDC

Retracted length : ≥ Stroke+147mm

Stroke : 100--700mm

Max Thrust : 4500N

Stage : 2 stage

Max speed at max load : 6.6mm/s

Max speed at no load : 45mm/s

Contact Now

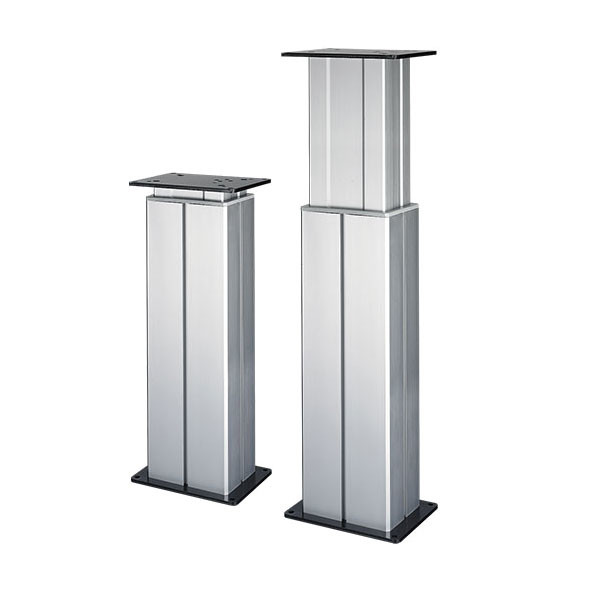

2 Stage Hall Sensor Electronic Lifting Column





1. Extruded aluminum rectangular appearance

2. 2-stage telescopic design

3. Stable and robust vertical lifting







Main Specifications:



Voltage  12V / 24V DC
Max. load  4500N (push)
Max. speed at max. load  6.6mm/s
Max. speed at no load  45mm/s
Stroke  100-700mm
Retracted length  ≥ Stroke+147mm
Dimension of outer tube  196.4*148.4mm rectangular
Stages  2-stage
Output signal   Hall sensors
Working temperature  +5°C~+45°C
Warranty  1 Year





Application: Designed for any height-adjustable workstation, such as nurse carts, ophthalmological devices, X-ray machines, etc.







2 Stage Hall Sensor Electronic Lifting Column Actuator Operating Table 4500N





LS-PAT-81 can compatible with the full range of actuator control box, depend on client project requirment, it can run 1 to 4 lifting column in parallel





2 Stage Hall Sensor Electronic Lifting Column Actuator Operating Table 4500N
