800mm Stroke Electric Linear Actuators Robust Long Life Safety

Name: 800mm Stroke Electric Linear Actuators Robust Long Life Safety
Brand: Linsheng Auto II MaxM
Price: 29 USD

Buy cheap 800mm Stroke Electric Linear Actuators Robust Long Life Safety product

Brand Name : Linsheng Auto II MaxM

Model Number : LS-PAT-22

Certification : CE

Place of Origin : CHINA

MOQ : negotiable

Price : 29-299 USD/PCS

Payment Terms : L/C, T/T, PayPal

Supply Ability : 10000 PCS per month

Delivery Time : 20 Days

Packaging Details : Paper gift box, 8 PCS/Carton

Voltage Related : 24V/36V DC, thermal protector

Max load : 10,000N (push); 5,500N (pull)

Max. speed at max. load : 4.5mm/s

Retracted length : ≥ Stroke + 210mm

Stroke : 30~800mm

Color : Black, Grey

Warranty : 1 Year

Customization : Available

Contact Now

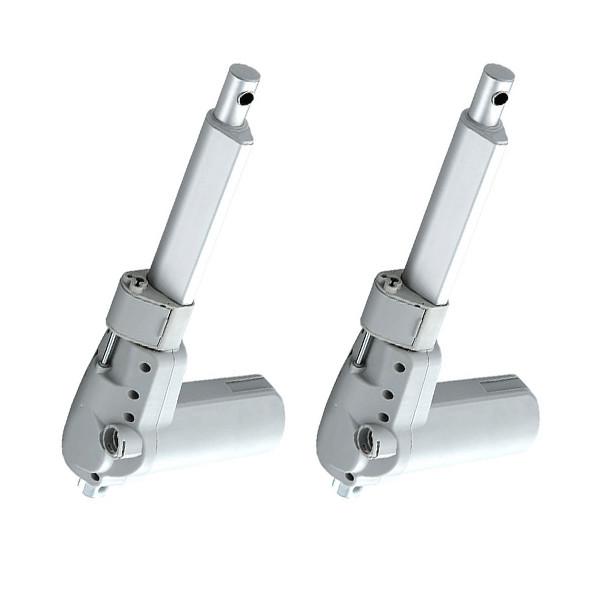

800mm Stroke Electric Linear Actuators Robust Long Life Safety

The LS-PAT-22 electric linear actuator was specifically designed for bariatric bed applications. These beds require a robust, long life solution that incorporates safety, reliability and effortless operation. A significant feature of the LS-PAT-22 linear actuator is the quick release function that allows for lowering of the patient in the event of an emergency or electrical power outage.

Main Specification Of Electric Linear Actuator

Linear Actuator	LS-PAT-22
Voltage of motor	24V/36V DC, thermal protector
Maximum load	10,000N (push); 5,500N (pull)
Maximum speed at full load	4.5mm/s
Stroke	30~800mm
Retracted length	≥ Stroke + 210mm
Output signals	POT, Reed, Hall sensors
Color	Black, Grey
Operational temperature range	+5°C~+45°C

Application

Specifically designed for bariatric bed applications.

800mm Stroke Electric Linear Actuators Robust Long Life Safety

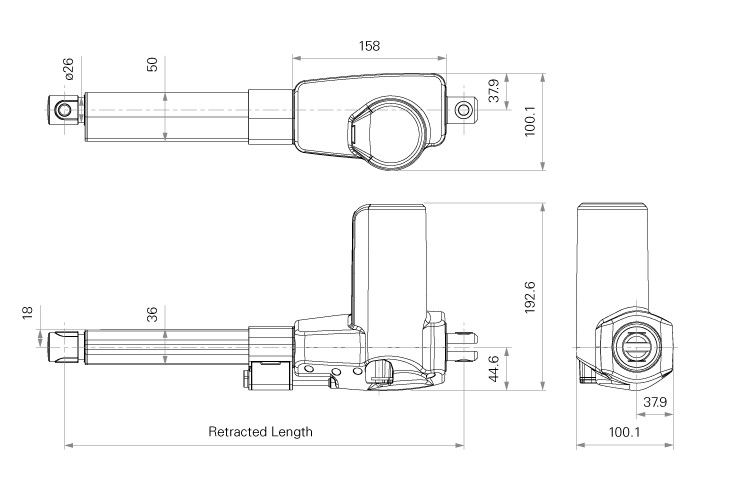

Drawing Of Electric Linear Actuator

Standard Dimension (mm)

800mm Stroke Electric Linear Actuators Robust Long Life Safety
