3mm/s 6000N Electric Linear Actuator Small Installation Dimension Patient Hoist System

Brand Name : Linsheng Auto II MaxM

Model Number : LS-PAT-26

Certification : CE

Place of Origin : CHINA

MOQ : negotiable

Price : 29-299 USD/PCS

Payment Terms : L/C, T/T, PayPal

Supply Ability : 10000 PCS per month

Delivery Time : 14 Days

Packaging Details : Paper gift box, 8 PCS/Carton

Voltage Related : 12/24V DC; 24V DC (PTC)

Stroke : 25~600mm

Max load : 6,000N (push); 3,500N (pull)

Max. speed at max. load : 3mm/s

Max. speed at no load : 30.2mm/s

IP rating : IP66W

Warranty : 1 Year

Customization : Available

Contact Now

6000N IP66W Small Installation Dimension Patient Hoist System Linear Actuator



The LS-PAT-26 electric linear actuator is one of our new generation medical DC linear actuators, which can lift up to 6000N, yet has a small installation dimension. In addition to this, its IP rating is up to IP66W. The LS-PAT-26 is highly recommended for various medical applications that require a short retracted length, yet need to support a large force, such as the leg adjustment or sling angle actuator on the patient hoist system.



Main Specification Of Electric Linear Actuator

Linear Actuator  LS-PAT-26
Voltage of motor  12/24V DC; 12/24V DC (PTC)
Stroke  25-600mm
Maximum load  6,000N (push); 3,500N (pull)
Maximum speed at full load

 3mm/s
Retracted length  ≥ 178mm (depending on chosen options)
Options  Hall sensors, POT

Operational temperature range

  5℃-45℃



Applications:

Highly recommended for various medical applications that require a short retracted length, yet need to support a large force, such as the leg adjustment or sling angle actuator on the patient hoist system.

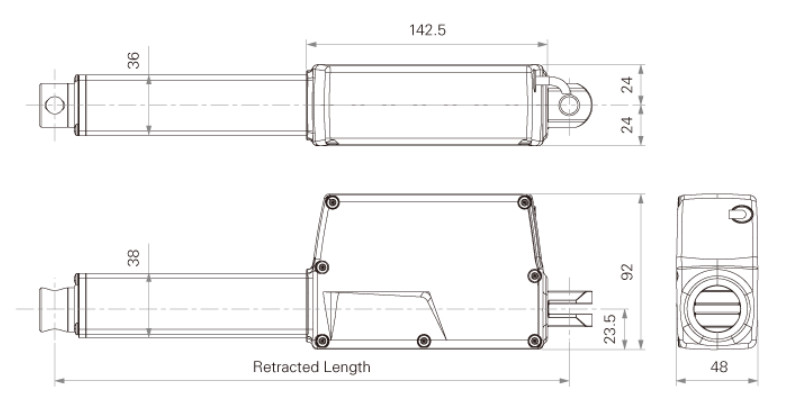

Drawing Of Electric Linear Actuator

Standard Dimensions (mm)



3mm/s 6000N Electric Linear Actuator Small Installation Dimension Patient Hoist System
